R-shaped suspended ceiling applies high and deep folding edge and make suitable keel hooks with thick base materials, therefore,the whole structure of suspended ceiling is very solid

Rich color ,two installation modes---with or without decoration bar,which have different visual effects

According to the physical and chemical properties of base materials,the product is inflaming resistant,anti-corrosion and easy cleaning .

It is applicable for both big area and home decoration asa new type and modern decoration material

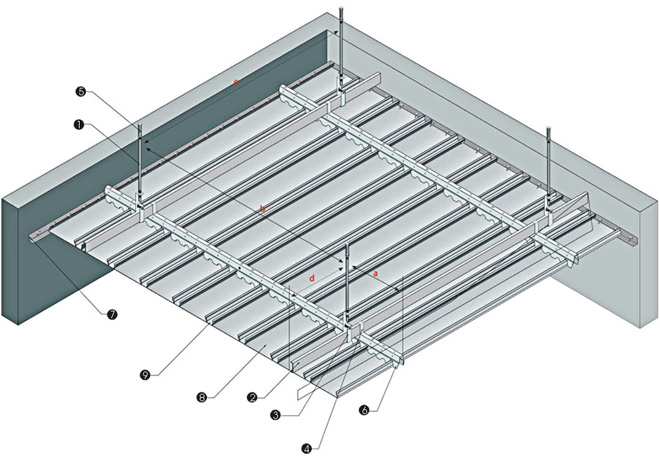

① Hanging pole
② 38main keel
③ Hanging parts of 38 main keel
④ Common hanging parts
⑤ Explosive keel
⑥ R-shaped keel
⑦ Wall angle
⑧ R-shaped panel
⑨ 25 fastener bar

1、Installing the slideline in the same height.
2、Lift the 38 main keel with hanging pole,  Explosive bolt and 38 main hanger.
3、Connect the R-shaped keel and the upper 38 main keel with common hanging parts ,adjust the whole hanging system to level .
4、Clamping the R-shaped strip ceiling with the R-shaped keelin order,installing color strips in the gap of two r-shaped panels.
5、Wearing gloves when installing plate,it finger  Printers or stains remain on the plate,please remove it off with warm water and detergent,Then dry it.
